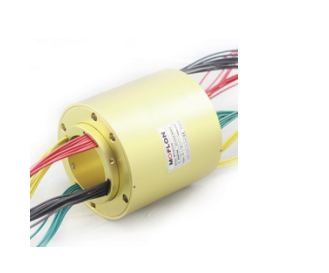

MW2050系列
2018-10-06 14:59 蘇州默孚龍

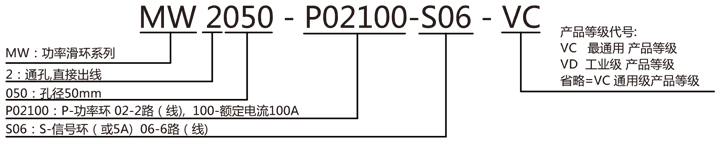

型號訂購說明:
| 產品等級選型表 | |||
| 產品等級代號 | 最高轉速 | 工作壽命 | 接觸材料 |
| VC | 100RPM | 1000萬轉 | 貴金屬 |
| VD | 200RPM | 3000萬轉 | 鍍金-鍍金 |
| 技術規格參數 | |||
| 機械技術指標 | 電氣技術指標 | ||
| 參數 | 數值 | 參數 | 數值 |
| 工作壽命 | 參考產品選型等級 | 功率 | |
| 額定轉速 | 參考產品選型等級 | 額定電壓 | 0~690VAC/VDC |
| 工作溫度 | -30℃~80℃ | 絕緣電阻 | ≥1000MΩ/500VDC |
| 工作濕度 | 0~85% RH | 導線規格 | AWG8#=50A 或 AWG8 并線 |
| 接觸材料 | 參考產品選型等級 | 導線長度 | 標準長度300mm（可據要求調整） |
| 殼體材料 | 鋁合金 | 絕緣強度 | 500VAC@50Hz，60s |
| 扭矩 | 0.1N.m；+0.03N.m/6路 | 動態電阻變化值 | <0.01Ω |
| 防護等級 | IP51 | ||
選型表
| MW2050系列滑環選型表 | |||||||||||||||
| 型號 | 60A | 100A | 150A | 200A | 300A | 500A | 長度L(mm) | 型號 | 60A | 100A | 150A | 200A | 300A | 500A | 長度L(mm) |
| MW2050-P0160 | 1 | 0 | 0 | 0 | 0 | 0 | 39.2 | MW2050-P0160-S06 | 1 | 0 | 0 | 0 | 0 | 0 | 60.8 |
| MW2050-P01100 | 0 | 1 | 0 | 0 | 0 | 0 | 50 | MW2050-P01100-S06 | 0 | 1 | 0 | 0 | 0 | 0 | 71.6 |
| MW2050-P01150 | 0 | 0 | 1 | 0 | 0 | 0 | 65 | MW2050-P01150-S06 | 0 | 0 | 1 | 0 | 0 | 0 | 95 |
| MW2050-P01200 | 0 | 0 | 0 | 1 | 0 | 0 | 65 | MW2050-P01200-S06 | 0 | 0 | 0 | 1 | 0 | 0 | 95 |
| MW2050-P01300 | 0 | 0 | 0 | 0 | 1 | 0 | 95 | MW2050-P01300-S06 | 0 | 0 | 0 | 0 | 1 | 0 | 125 |
| MW2050-P01500 | 0 | 0 | 0 | 0 | 0 | 1 | 125 | MW2050-P01500-S06 | 0 | 0 | 0 | 0 | 0 | 1 | 155 |
| MW2050-P0260 | 2 | 0 | 0 | 0 | 0 | 0 | 50 | MW2050-P0260-S06 | 2 | 0 | 0 | 0 | 0 | 0 | 71.6 |
| MW2050-P02100 | 0 | 2 | 0 | 0 | 0 | 0 | 71.6 | MW2050-P02100-S06 | 0 | 2 | 0 | 0 | 0 | 0 | 93.2 |
| MW2050-P02150 | 0 | 0 | 2 | 0 | 0 | 0 | 95 | MW2050-P02150-S06 | 0 | 0 | 2 | 0 | 0 | 0 | 125 |
| MW2050-P02200 | 0 | 0 | 0 | 2 | 0 | 0 | 95 | MW2050-P02200-S06 | 0 | 0 | 0 | 2 | 0 | 0 | 125 |
| MW2050-P02300 | 0 | 0 | 0 | 0 | 2 | 0 | 155 | MW2050-P02300-S06 | 0 | 0 | 0 | 0 | 2 | 0 | 185 |
| MW2050-P02500 | 0 | 0 | 0 | 0 | 0 | 2 | 215 | MW2050-P02500-S06 | 0 | 0 | 0 | 0 | 0 | 2 | 245 |
| MW2050-P0360 | 3 | 0 | 0 | 0 | 0 | 0 | 60.8 | MW2050-P0360-S06 | 3 | 0 | 0 | 0 | 0 | 0 | 82.4 |
| MW2050-P03100 | 0 | 3 | 0 | 0 | 0 | 0 | 93.2 | MW2050-P03100-S06 | 0 | 3 | 0 | 0 | 0 | 0 | 114.8 |
| MW2050-P03150 | 0 | 0 | 3 | 0 | 0 | 0 | 125 | MW2050-P03150-S06 | 0 | 0 | 3 | 0 | 0 | 0 | 155 |
| MW2050-P03200 | 0 | 0 | 0 | 3 | 0 | 0 | 125 | MW2050-P03200-S06 | 0 | 0 | 0 | 3 | 0 | 0 | 155 |
| MW2050-P03300 | 0 | 0 | 0 | 0 | 3 | 0 | 215 | MW2050-P03300-S06 | 0 | 0 | 0 | 0 | 3 | 0 | 245 |
| MW2050-P03500 | 0 | 0 | 0 | 0 | 0 | 3 | 215 | MW2050-P03500-S06 | 0 | 0 | 0 | 0 | 0 | 3 | 245 |
| MW2050-P0460 | 4 | 0 | 0 | 0 | 0 | 0 | 71.6 | MW2050-P0460-S06 | 4 | 0 | 0 | 0 | 0 | 0 | 93.2 |
| MW2050-P04100 | 0 | 4 | 0 | 0 | 0 | 0 | 114.8 | MW2050-P04100-S06 | 0 | 4 | 0 | 0 | 0 | 0 | 136.4 |
| MW2050-P04150 | 0 | 0 | 4 | 0 | 0 | 0 | 155 | MW2050-P04150-S06 | 0 | 0 | 4 | 0 | 0 | 0 | 185 |
| MW2050-P04200 | 0 | 0 | 0 | 4 | 0 | 0 | 155 | MW2050-P04200-S06 | 0 | 0 | 0 | 4 | 0 | 0 | 185 |
| MW2050-P04300 | 0 | 0 | 0 | 0 | 4 | 0 | 275 | MW2050-P04300-S06 | 0 | 0 | 0 | 0 | 4 | 0 | 305 |
| MW2050-P0660 | 6 | 0 | 0 | 0 | 0 | 0 | 93.2 | MW2050-P0660-S06 | 6 | 0 | 0 | 0 | 0 | 0 | 114.8 |
| MW2050-P06100 | 0 | 6 | 0 | 0 | 0 | 0 | 161 | MW2050-P06100-S06 | 0 | 6 | 0 | 0 | 0 | 0 | 182.6 |
| MW2050-P06150 | 0 | 0 | 6 | 0 | 0 | 0 | 215 | MW2050-P06150-S06 | 0 | 0 | 6 | 0 | 0 | 0 | 245 |
| MW2050-P06200 | 0 | 0 | 0 | 6 | 0 | 0 | 215 | MW2050-P06200-S06 | 0 | 0 | 0 | 6 | 0 | 0 | 245 |
注：N個60A 電流環并起來可作為1路N*60A電流環使用；比如: 2環60A 并起來做作為 1路120A 使用。
可根據客戶要求，可增加信號環道，熱電偶信號環道，耐高溫等級可選，請咨詢客服。

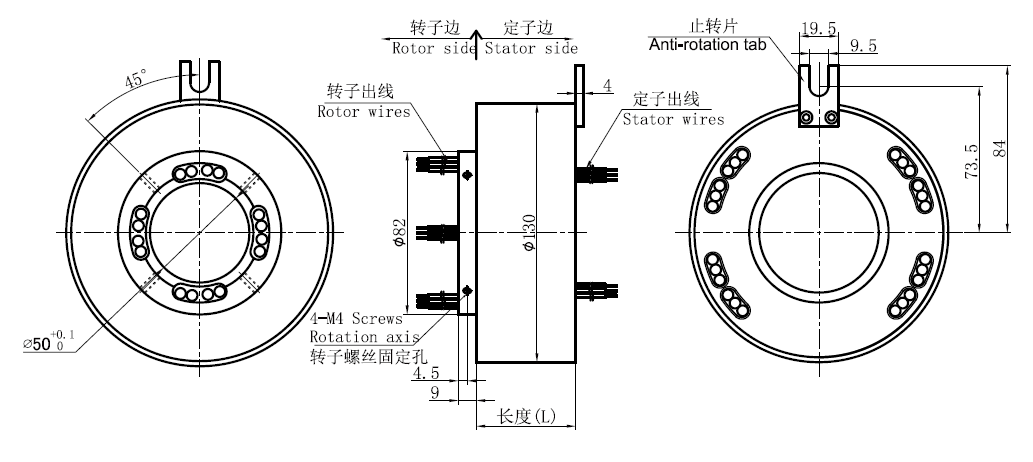

標準圖紙
| 各環路導線色碼表 | |||
| 環道 | 顏色 | 環道 | 顏色 |
| 1 | 黑 | 3 | 黃 |
| 2 | 紅 | 4 | 綠 |
(6個顏色為一組，分別序號1...6, 下一組從7...12, 重復前6個顏色， 每組用號碼管作為組序號標識。)
