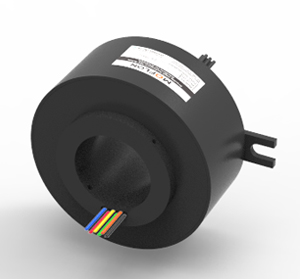

GT50130系列 過孔多路數導電滑環
- · 外徑130mm, 通孔直徑為50mm（適用于<=50mm）的標準系列過孔多路數導電滑環。*注意：如需<50mm的內孔，可通過加內襯軸套解決。
- · 標準化產品，有庫存
- · 鍍金環+合金刷（鍍金）
- · 支持信號，功率混合傳輸
- · 可基于標準型號定制電路數和電流電壓
-
典型應用：
工業機器加工中心、旋轉工作臺、重型設備塔臺、電纜卷盤、包裝設備、磁性離合器、工藝控制設備、旋轉傳感器、緊急照明設備、機器人、展覽/顯示設備、醫療設備、旋轉門等；

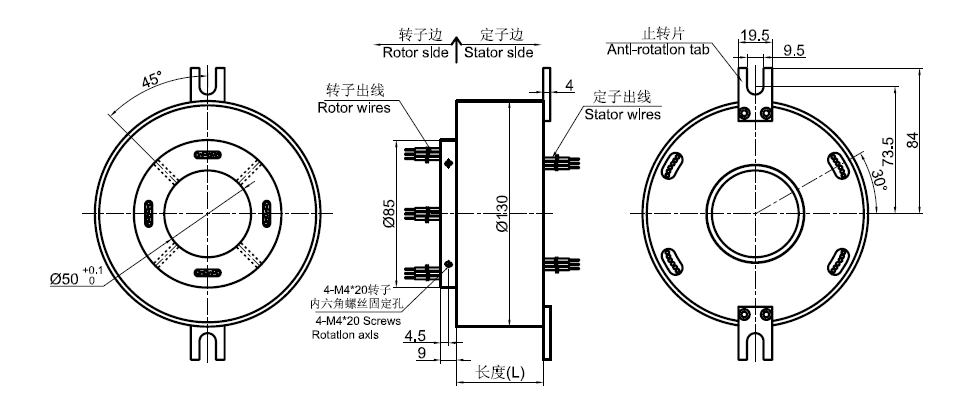

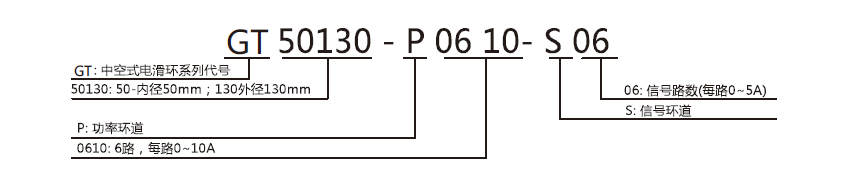

型號訂購說明：
| 技術規格參數 | ||||
| 機械技術指標 | 電氣技術指標 | |||
| 參數 | 數值 | 參數 | 數值 | |
| 工作壽命 | 1億轉 | 功率 | 信號 | |
| 額定轉速 | 1~1800RPM | 額定電壓 | 0~690VAC/VDC | 0~440VAC/VDC |
| 工作溫度 | -30℃~80℃ | 絕緣電阻 | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| 工作濕度 | 0~85% RH | 導線規格 | AWG16#鍍錫鐵氟龍 | AWG22#鍍錫鐵氟龍 |
| 接觸材料 | 貴金屬 | 導線長度 | 標準長度300mm（可據要求調整） | |
| 殼體材料 | 鋁合金 | 絕緣強度 | 1000VAC@50Hz，60s | |
| 轉動扭矩 | 0.1N.m；+0.03N.m/6路 | 動態電阻變化值 | <0.01Ω | |
| 防護等級 | IP51 | |||
| GT50130系列過孔多路數導電滑環選型表 | |||||||||
| 型號 | 10A | 信號或5A | 長度 L（mm) | 型號 | 10A | 信號或5A | 長度 L（mm) | ||
| GT50130-S02 | 0 | 2 | 43.6 | GT50130-S48 | 0 | 48 | 215.2 | ||
| GT50130-P0210 | 2 | 0 | 43.6 | GT50130-P0610-S42 | 6 | 42 | 215.2 | ||
| GT50130-S03 | 0 | 3 | 47.2 | GT50130-P0910-S39 | 9 | 39 | 215.2 | ||
| GT50130-P0310 | 3 | 0 | 47.2 | GT50130-P1210-S36 | 12 | 36 | 215.2 | ||
| GT50130-S06 | 0 | 6 | 58 | GT50130-P1810-S30 | 18 | 30 | 215.2 | ||
| GT50130-P0210-S04 | 2 | 4 | 58 | GT50130-P2410-S24 | 24 | 24 | 215.2 | ||
| GT50130-P0410-S02 | 4 | 2 | 58 | GT50130-S60 | 0 | 60 | 258.4 | ||
| GT50130-P0610 | 6 | 0 | 58 | GT50130-P0610-S54 | 6 | 54 | 258.4 | ||
| GT50130-S12 | 0 | 12 | 79.6 | GT50130-P0910-S51 | 9 | 51 | 258.4 | ||
| GT50130-P0210-S10 | 2 | 10 | 79.6 | GT50130-P1210-S48 | 12 | 48 | 258.4 | ||
| GT50130-P0310-S09 | 3 | 9 | 79.6 | GT50130-S72 | 0 | 72 | 301.6 | ||
| GT50130-P0610-S06 | 6 | 6 | 79.6 | GT50130-P0610-S66 | 6 | 66 | 301.6 | ||
| GT50130-P0810-S04 | 8 | 4 | 79.6 | GT50130-P1210-S60 | 12 | 60 | 301.6 | ||
| GT50130-P1010-S02 | 10 | 2 | 79.6 | GT50130-P2410-S48 | 24 | 48 | 301.6 | ||
| GT50130-P1210 | 12 | 0 | 79.6 | GT50130-P3610-S36 | 36 | 36 | 301.6 | ||
| GT50130-S18 | 0 | 18 | 101.2 | GT50130-S84 | 0 | 84 | 348.8 | ||
| GT50130-P0210-S16 | 2 | 16 | 101.2 | GT50130-P1210-S72 | 12 | 72 | 348.8 | ||
| GT50130-P0410-S14 | 4 | 14 | 101.2 | GT50130-P2410-S60 | 24 | 60 | 348.8 | ||
| GT50130-P0610-S12 | 6 | 12 | 101.2 | GT50130-P3610-S48 | 36 | 48 | 348.8 | ||
| GT50130-P0810-S10 | 8 | 10 | 101.2 | GT50130-S96 | 0 | 96 | 392 | ||
| GT50130-P1010-S08 | 10 | 8 | 101.2 | GT50130-P1210-S84 | 12 | 84 | 392 | ||
| GT50130-P1210-S06 | 12 | 6 | 101.2 | GT50130-P2410-S72 | 24 | 72 | 392 | ||
| GT50130-P1410-S04 | 14 | 4 | 101.2 | GT50130-P3610-S60 | 36 | 60 | 392 | ||
| GT50130-P1610-S02 | 16 | 2 | 101.2 | GT50130-P4210-S54 | 42 | 54 | 392 | ||
| GT50130-S24 | 0 | 24 | 122.8 | GT50130-S108 | 0 | 108 | 441.2 | ||
| GT50130-P0410-S20 | 4 | 20 | 122.8 | GT50130-P1210-S96 | 12 | 96 | 441.2 | ||
| GT50130-P0610-S18 | 6 | 18 | 122.8 | GT50130-P2410-S84 | 24 | 84 | 441.2 | ||
| GT50130-P1210-S12 | 12 | 12 | 122.8 | GT50130-P3610-S72 | 36 | 72 | 441.2 | ||
| GT50130-P1810-S06 | 18 | 6 | 122.8 | GT50130-S120 | 0 | 120 | 484.8 | ||
| GT50130-P2410 | 24 | 0 | 122.8 | GT50130-P1210-S108 | 12 | 108 | 484.8 | ||
| GT50130-S30 | 0 | 30 | 144.4 | GT50130-P2410-S96 | 24 | 96 | 484.8 | ||
| GT50130-P0610-S24 | 6 | 24 | 144.4 | GT50130-P3610-S84 | 36 | 84 | 484.8 | ||
| GT50130-P1210-S18 | 12 | 18 | 144.4 | GT50130-P4810-S72 | 48 | 72 | 484.8 | ||
| GT50130-P1810-S12 | 18 | 12 | 144.4 | GT50130-S132 | 0 | 132 | 527.6 | ||
| GT50130-P2410-S06 | 24 | 6 | 144.4 | GT50130-P1210-S120 | 12 | 120 | 527.6 | ||
| GT50130-P3010 | 30 | 0 | 144.4 | GT50130-P2410-S108 | 24 | 108 | 527.6 | ||
| GT50130-S36 | 0 | 36 | 170 | GT50130-P3610-S96 | 36 | 96 | 527.6 | ||
| GT50130-P0610-S30 | 6 | 30 | 170 | GT50130-P4810-S84 | 48 | 84 | 527.6 | ||
| GT50130-P1210-S24 | 12 | 24 | 170 | GT50130-S144 | 0 | 144 | 570.8 | ||
| GT50130-P3610 | 36 | 0 | 170 | GT50130-P1210-S132 | 12 | 132 | 570.8 | ||
| GT50130-S42 | 0 | 42 | 193.6 | GT50130-P2410-S120 | 24 | 120 | 570.8 | ||
| GT50130-P0610-S36 | 6 | 36 | 193.6 | GT50130-P3610-S108 | 36 | 108 | 570.8 | ||
| GT50130-P1210-S30 | 12 | 30 | 193.6 | GT50130-P4810-S96 | 48 | 96 | 570.8 | ||
注：10A和 信號(5A)可以任意組合，詳細請咨詢客服。可在標準產品上進行非標定制，請咨詢客服。
